How many motorcycles fit?
The fold 1000MAX takes two motorcycles on a 240 × 150 cm load area. If you mostly ride alone, a model for one motorcycle such as the fold 500 or the fold 750 is often enough.
EILX FOLD 1000 MAX
Ab 5.890,00 €
Configure
Tap the points for details
360°
Drag to rotate
EILX fold
EILX FOLD 1000 MAX
Braked, for 2 large motorcycles
Ab 5.890,00 €
incl. VAT · plus preparation fee
- Road approval with COC certificate
- 100 km/h approval
- 4-year warranty
- Built for you in about 1–2 weeks
- Spare parts & service from EILX
- Developed and built in Germany
Secure payment
Bank transfer
Bank transfer
Does it fit me?
Does your
Does your
motorcycle fit?
Search for your motorcycle or describe it. We check weight, length and width against this model and, if needed, show you a better-fitting Fold.
Popular searches:
Your motorcycles
No motorcycle selected yet.
Two motorcycles? Just search for the second one. Same model twice?
Choose your motorcycle
We will check weight, length and width right away.
Your load
A guide based on your details. The values in your vehicle documents are binding.
01 · DimensionsFull size on the road.
Full size on the road.

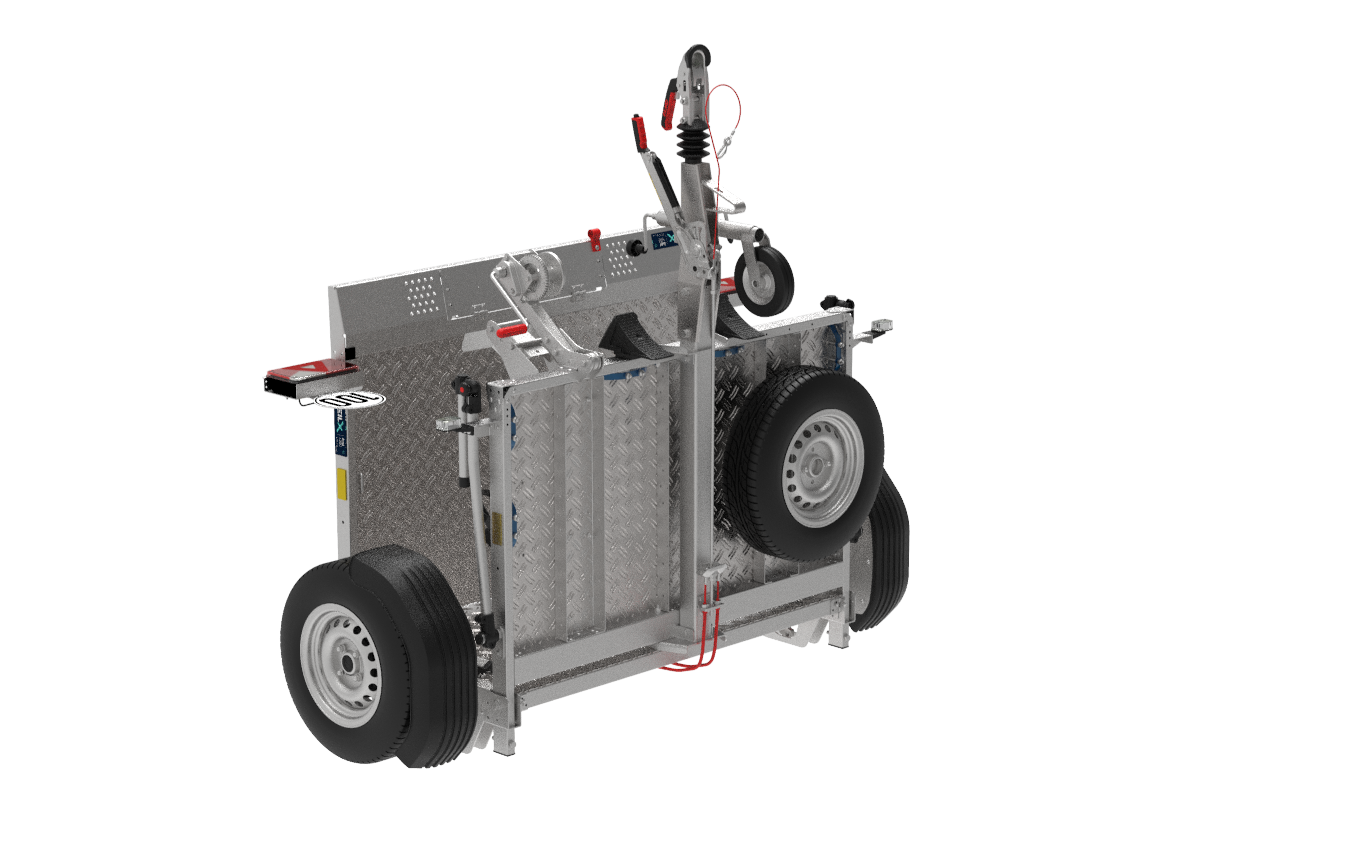

Tiny when stood up.
Stood up, the EILX needs only a fraction of the floor space. It stands freely and safely, no wall mounting needed.
02 · How it works
On your own. In a few minutes.
01Fold it.
Folded, it stands on its own, no wall mounting needed. With a little practice it is ready to go in a few minutes.
02Load it.
Lower it, load your motorcycle with the winch and secure it in the wheel chock.
03Drive.
Reach your destination safely with 100 km/h approval and COC certificate.
- Maximum authorised mass
- 1,000 kg
- Payload
- 740 kg
- Kerb weight
- 260 kg
- Nose weight
- 75 kg**
- Usable dimensions (LxW)
- 240 × 150 cm
- External dimensions (LxW)
- 350 × 215 cm
- Upright (D / W / H)
- 85 x 215 x 195 cm
- Loading angle
- 4 - 5°
- Tyres
- 155/80 R13"
- 100 km/h approval
- Yes
- Brake
- Yes
- Lashing points
- 12 pcs.
**Die Stützlast sollte 4% des tatsächlichen Gesamtgewichts des Anhängers nicht überschreiten, muss jedoch maximal 25kg betragen. Die Angabe zur "max. zulässigen Stützlast: 75 kg" bezieht sich ausschließlich auf den EILX FOLD 1000 MAX. Wenn dein PKW eine Stützlast zwischen 40 kg und 150 kg aufweist, kannst du dennoch unseren EILX sicher an dein Fahrzeug ankuppeln.
- Tow ball coupling with safety indicator
- Safety cable for establishing a secure connection between the trailer and towing vehicle. Specially coated to avoid damaging the tow ball coupling.
- Very stable, vibration-resistant frame construction
- DEKRA-tested frame component
- Slip-resistant aluminium chequer plate
- Very high localised load-bearing capacity of the frame
- Plastic protectors at the rear protect the frame when lowered.
- AL-KO cable winch with power assistance and braking function
- modern multifunction lighting, 3-pin plug, EC equipment
- Impact-resistant plastic mudguards
- Approval
- COC certificate included
- Top speed
- 100 km/h (sticker from the registration office)
- Licence up to 750 kg GVW
- Class B
- Licence above 750 kg GVW
- Class B up to 3,500 kg combination, otherwise BE
- Car nose weight
- 40 – 150 kg
Setting up, unfolding, folding: the video shows every step.
Buy without risk
What happens after you buy.
Built for you
Ready for delivery in about 1–2 weeks. Shipping within Europe or collection in Besigheim or from a dealer.
Shipping & collectionRegistration, approval and driving licences
With the COC certificate you can register your EILX anywhere in Europe. We explain which driving licence you need and how registration works in 4 steps.
Learn moreService & spare parts
Spare parts directly from EILX to match your model, plus personal support.
Spare partsNot sure which model you need?
Explained in a few minutes: how the fold models differ and which one suits your motorcycle, your car and your garage.
05 · Questions
FAQ about the EILX FOLD 1000
Do I need a special driving licence?
The EILX can be towed with a Category B or BE driving licence.
For an EILX with a maximum authorised mass (MAM) of 1,000 kg, the combination of towing vehicle and trailer must not exceed a maximum authorised mass of 3,500 kg when driven with a Category B licence.
Alternatively, the EILX can be factory-rated to a maximum authorised mass of 750 kg. In this version, the trailer is classed as a light trailer. It may therefore be towed with a Category B licence even if the sum of the maximum authorised masses of the towing vehicle and trailer exceeds 3,500 kg.
With a Category BE driving licence, both EILX variants can be used irrespective of this 3,500 kg limit, provided the towing vehicle's permitted towing capacities are observed.
Summary:
- EILX 1,000 kg maximum authorised mass → Category B only for combinations up to 3,500 kg.
- EILX 750 kg maximum authorised mass → Category B possible even for combinations over 3,500 kg.
- Category BE → significantly higher trailer weights permitted.
Is the trailer approved for 100 km/h?
Yes. The EILX FOLD 1000 MAX can optionally be ordered prepared for 100 km/h approval. For this purpose, the trailer is fitted with the required shock absorbers and meets the corresponding requirements for registration.
The 100 km/h sticker is issued by the responsible registration authority once registration has been completed successfully.
How do I secure my motorcycle correctly?
The integrated motorcycle wheel chock and optimally positioned lashing points allow the motorcycle to be secured quickly, safely and firmly.
For professional load securing, we offer suitable lashing straps and tie-down systems from EILZURR and will be happy to advise you on your choice. Our motto is: a good trailer deserves a good tie-down system. After all, the goal is always the same – to transport your cargo smartly, conveniently and safely from A to B.
Can I also transport bicycles?
Yes, we offer two options for transporting bicycles or e-bikes with the EILX FOLD 1000 MAX.
Option 1:
The bicycles can be transported directly on the loading platform. This option is possible with one motorcycle and up to two bicycles.
Option 2:
As an option, we offer a frame extension from our accessories range. This increases the usable width by approx. 15 cm on each side, allowing e-bikes to be transported safely alongside two motorcycles.
Please note that this solution is not possible in every configuration for very wide motorcycles, such as a BMW GS.
Can the trailer be stored outdoors permanently?
Yes, the high-quality galvanised finish reliably protects the EILX against weathering and corrosion.
The standard galvanised finish already offers a very high level of protection and is designed for year-round use.
The EILX is also optionally available with a powder coating. This is applied over the galvanised surface and, together with the galvanising, forms what is known as a duplex coating. This further improves corrosion protection and gives the surface a particularly premium appearance.
How much space do I need when it is folded?
Thanks to its intelligent folding concept, the EILX requires only a fraction of the parking space of a conventional trailer when stored.
When folded, its dimensions are just approx. 200 cm wide, 85 cm deep and 195 cm high.
When folded, the EILX can be manoeuvred comfortably by hand. Its well-engineered design keeps it safe and stable – no wall or additional fastening is required.
Guide
EILX fold 1000MAX: folding motorcycle trailer for two motorcycles
A motorcycle trailer spends most of its time in the garage. You fold the fold 1000MAX up after the ride and store it in a small space. Here are the key points before you decide.
Braked or unbraked?
The fold 1000MAX has its own brakes. That gives you more reserve, especially with heavy motorcycles. Your vehicle registration certificate shows under O.1 how much your car may tow braked.
Calculating the payload
The fold 1000MAX has a payload of 740 kg. What counts is the weight of your motorcycle ready to ride, with a full tank. You will find it in your vehicle registration certificate under G. Add luggage and accessories and plan some reserve. Check whether your motorcycle fits in the model advisor above.
Which driving licence do I need?
The fold 1000MAX has a gross vehicle weight of 1,000 kg. You may tow it with class B as long as car and trailer together have a permitted total weight of no more than 3,500 kg. Up to 4,250 kg you need B96, above that BE. More under Registration & licence.
Registration and 100 km/h
Every EILX comes with a COC certificate. You use it to register the trailer at your registration office, no individual approval is needed. The models are approved for 100 km/h. You receive the 100 km/h sticker after registration if your towing vehicle meets the requirements.
Saving space in garage and carport
Folded up, the fold 1000MAX measures just 85 × 215 × 195 cm (D × W × H) and stands on its own without any wall mounting. That leaves room for car and motorcycle in your garage, basement or carport. You can see how folding works in the video above.
